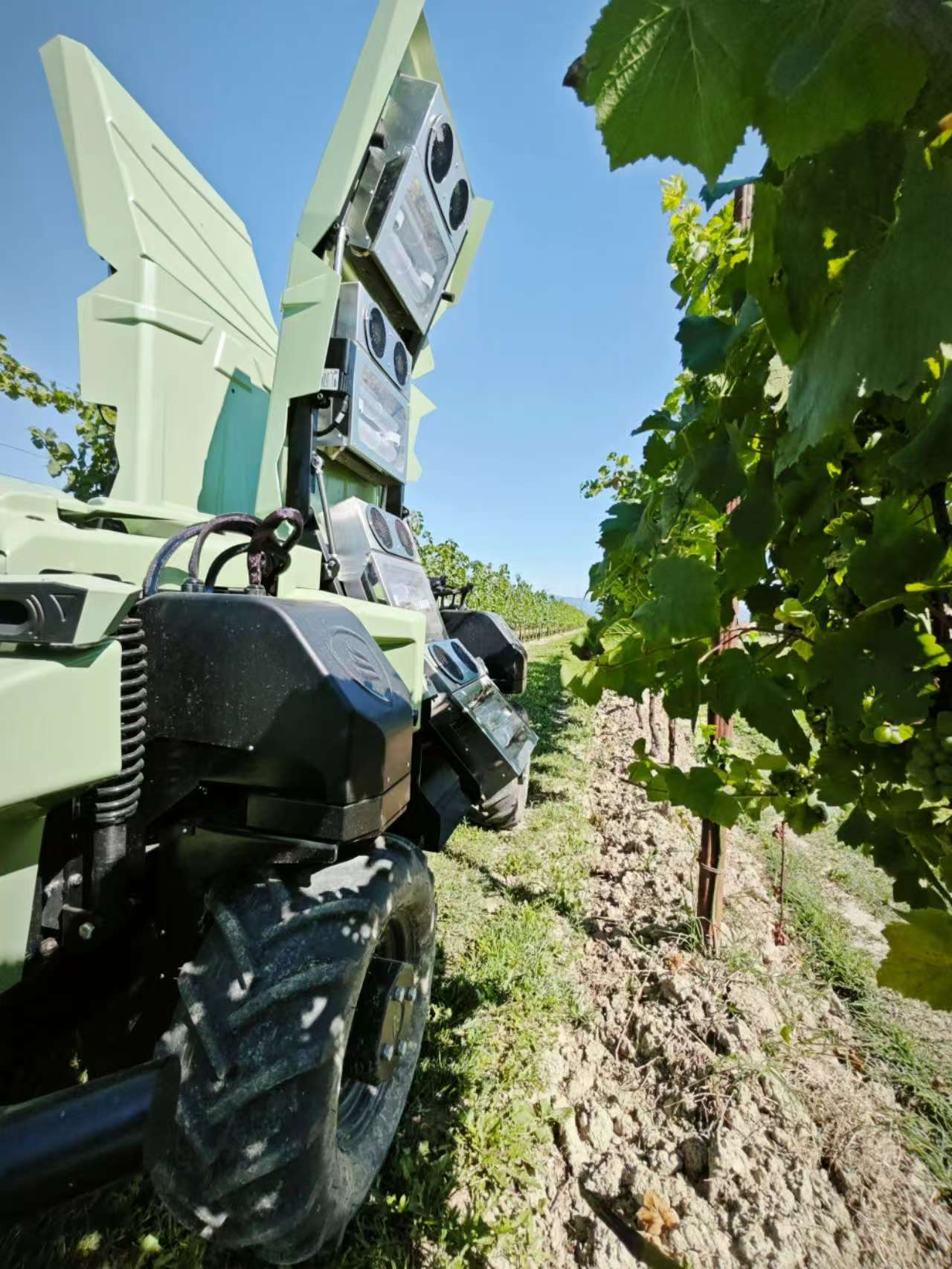

Congratulations on the Application of JK’s UVC Induction Lamp System in Vine Yard

Advantages of UV Induction Lamp System

• Proved and matured technology: The technology exists more than a hundred years. JK has installed millions of visible induction lights globally which have the same basic principle and know-how.
• Long lifetime: The induction technology uses the frequency induction to drive the lamp. There is no electrode to kill the lamp as conventional low pressure mercury lamp or amalgam lamp. The lifetime is 100,000 hours and the standard warranty period is 60,000 hours or 5 years.
• No re-lamping in 5 years virtually eliminates the costly down time and maintenance

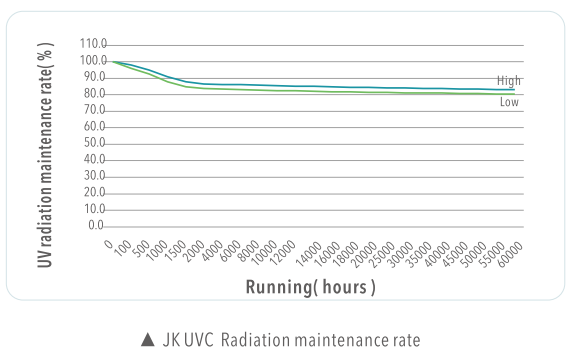

• Low light depreciation: 70% or higher UV light maintenance rate at 60,000 hours
• No negative in lifetime of lamp with frequent power on & off
• Instant on/off and instant hot restrike eliminate warm-up
• Extensive suitable ambient temperature range: -10 - 50℃ (14-122℉)
• No liquid mercury: The technology uses solidified amalgam which is easy to manage, collect and dispose.
• Strong UV radiation intensity: The pure quartz lamp envelope is used.
• Pure, high intensity and uniform 253.7 nm radiation
• High UV conversion efficiency: UV radiation power is 30 to 40% of total output power depending on models.
• Optional ozonic and ozone-free lamp
• Available power as high as 800W eliminates the need for invasive rows of multiple cables, ballasts, controls and power cabinets.
• Low ballast loss: The power factor of ballast is over 99% and it is an electronic ballast.
• Good for tough area where the power supply fluctuates significantly or dirty power occurs or vibration area
• Stable output: Output power fluctuates within 3% when supply voltage varies in 10%.
• Sturdy and durable ballast design with military graded electronic components and high quality extruded or die cast aluminum housing for maintenance free and low operation cost.
• No EMC issue: Compliance of CE Standard 55014
• Optional supply voltage: 120~277Vac for American market or 220~240Vac for Asian and European market, or 38-52 VDC for mobile application

Some Useful Links of the Application of UV Light in Vine Yard

1 UV light in vineyards to reduce fungicide dependence – Bragato Research Institute  https://bri.co.nz/2024/12/03/uv-light-in-vineyards/#:~:text=UV-C%20light%20technology%20offers%20a%20multitude%20of%20benefits,making%20it%20an%20attractive%20alternative%20to%20traditional%20fungicides.

UV light in vineyards to reduce fungicide dependence

December 3, 2024

2 Ultraviolet-C Light Versus Powdery Mildew in the Vineyard  https://www.winebusiness.com/wbm/article/299611

WBM / April 2025 / Grape Growing

Ultraviolet-C Light Versus Powdery Mildew in the Vineyard

WSU Researchers Exploit Powdery Mildew Weakness, Making UV-C Viable Alternative to Control Disease

by Bryan Avila

Apr 1, 2025

3 Effects of Ultraviolet-C Light on Grapevine Powdery Mildew and Fruit Quality in Vitis vinifera Chardonnay | American Journal of Enology and Viticulture  https://www.ajevonline.org/content/75/1/0750014

4 Field-Scale Ultraviolet-C Light Applications to Manage Grapevine Powdery Mildew | Progressive Crop Consultant  https://progressivecrop.com/2024/11/18/field-scale-ultraviolet-c-light-applications-to-manage-grapevine-powdery-mildew/

5 Tunnel Vision: Thoughts on UVC in Viticulture  https://www.thoughtfulviticulture.com/post/tunnel-vision-thoughts-on-uvc-in-viticulture

6 UV light in vineyards to reduce fungicide dependence – Bragato Research Institute

https://bri.co.nz/2024/12/03/uv-light-in-vineyards/

7 The Science Behind UV Light in Vineyards | SevenFifty Daily  https://daily.sevenfifty.com/the-science-behind-uv-light-in-vineyards/

8 Ultraviolet Light as an Integrative Pest Management Tool for Grape Powdery Mildew - American Vineyard Magazine  https://americanvineyardmagazine.com/ultraviolet-light-as-an-integrative-pest-management-tool-for-grape-powdery-mildew/

9 Pathogen protection mechanism

9.1. UVC exposure triggers a defense mechanism in the plants which results in the production of a natural hormone: salicylic acid

9.2. This hormone activates natural defenses even before the pathogen attacks.

9.3. After treatment, plants become more resistant to future attacks

Product Proforlio ( UV Induction Lamp System) & contact

Contact me: [email protected] for any enquiry.
