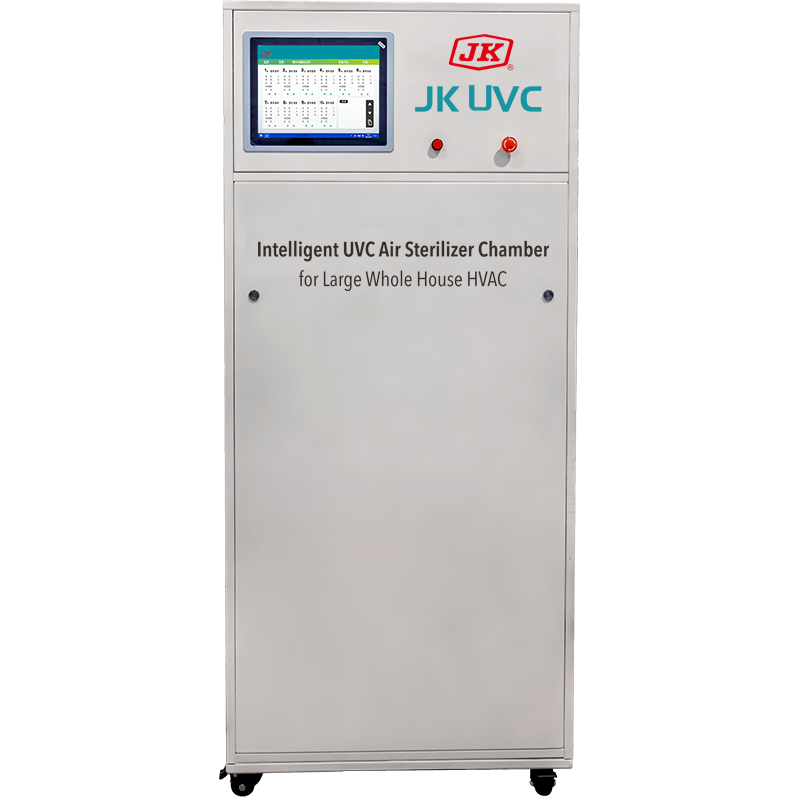

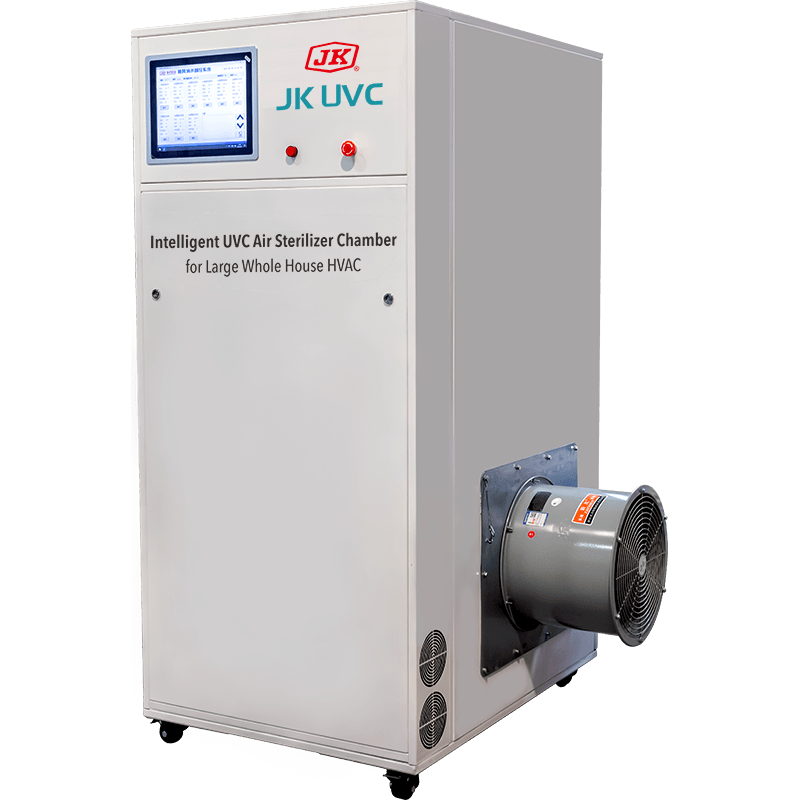

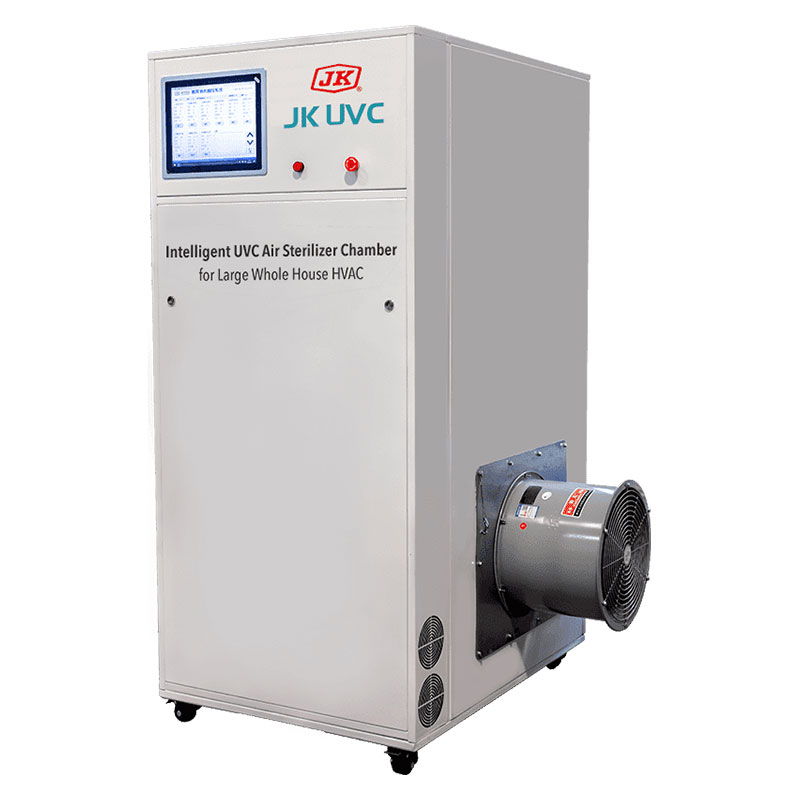

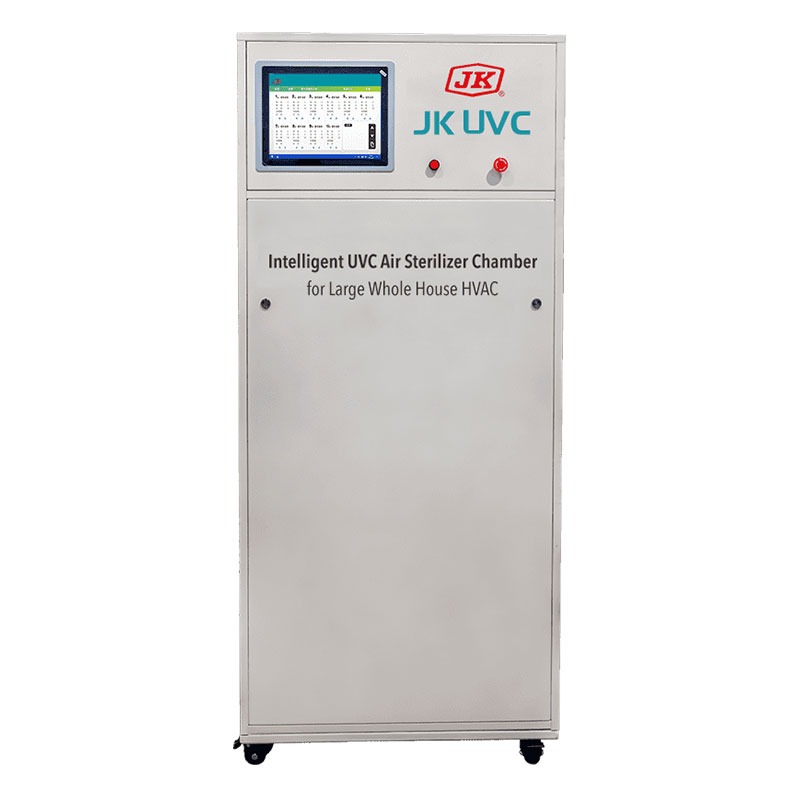

Intelligent UV air sterilizer chamber with induction lamps(2.4KW~12KW)

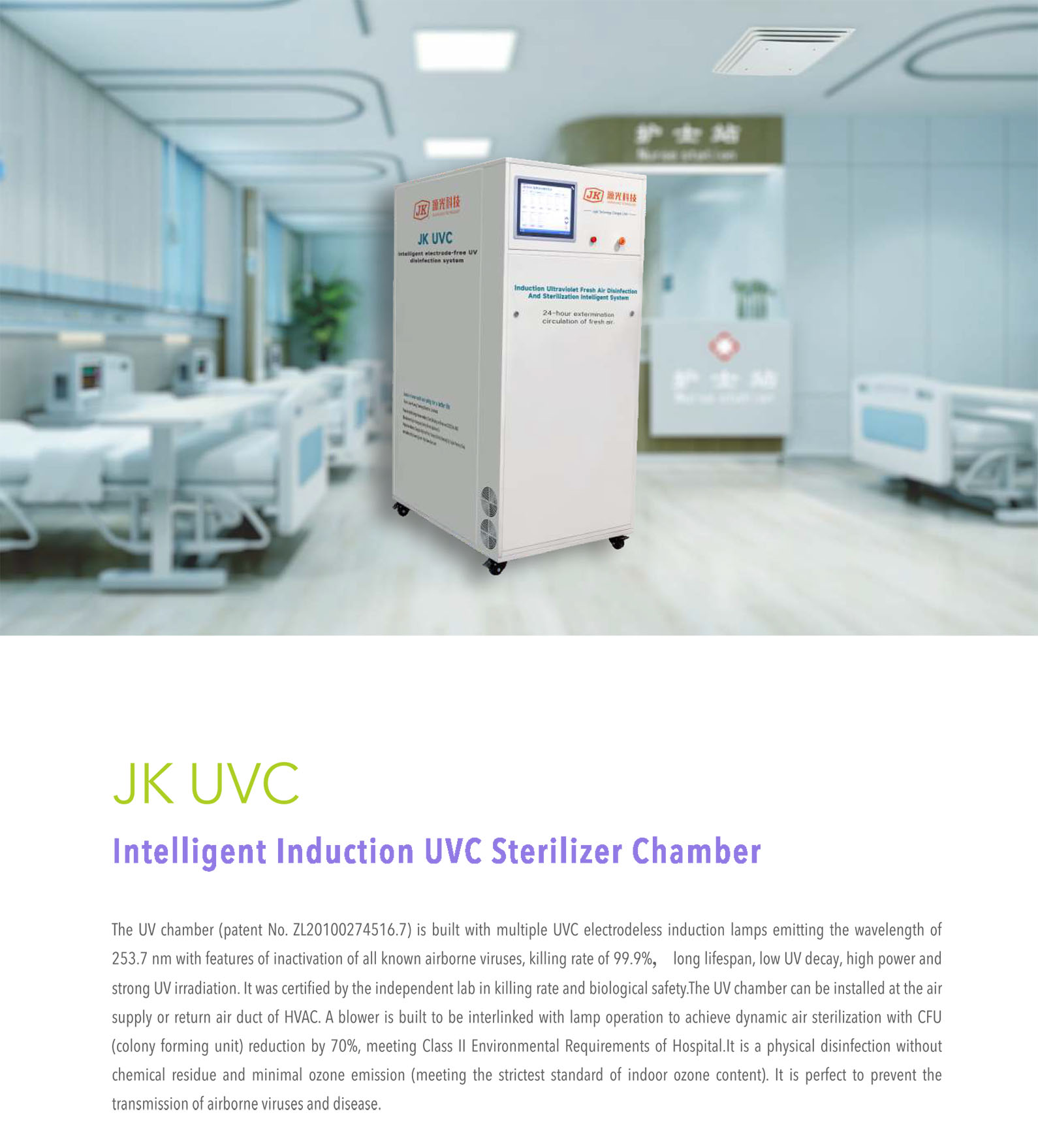

JK UVC Intelligent Induction UVC Sterilizer Chamber

  Filtered Far UVC 253.7nm Germicidal Technology | Air & Surface disinfection for water bodies

Long  Lifespan  &  High  Power，safe and effective，sustainable，real-time

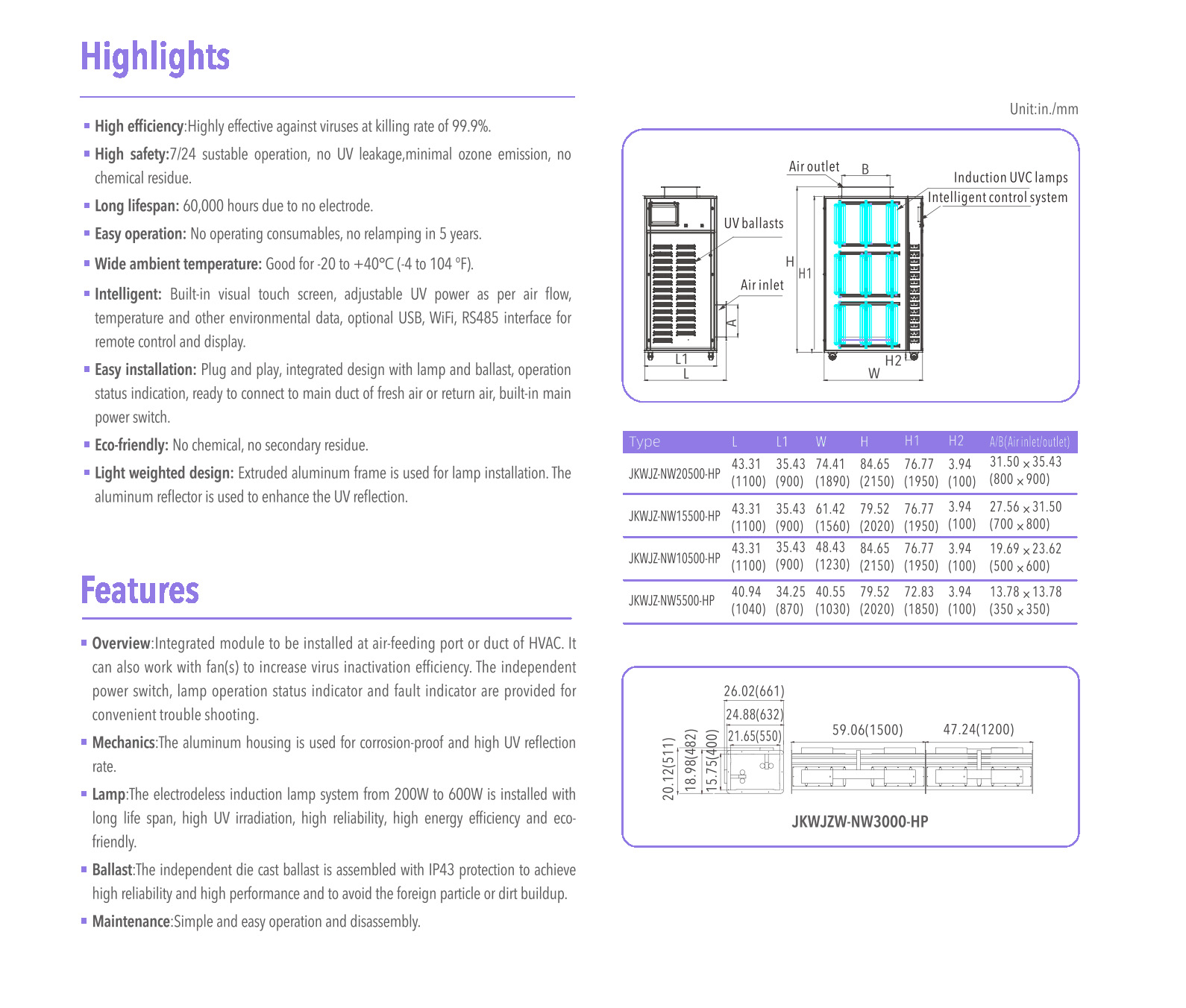

— Advantages —

· High efficiency:Highly effective against viruses at killing rate of 99.9%
· High safety:7/24 sustable operation, no UV leakage,minimal ozone emission, no chemical residue
· Long lifespan: 60,000 hours due to no electrode
· Easy operation: No operating consumables, no relamping in 5 years
· Wide ambient temperature: Good for -20 to +40℃ (-4 to 104 °F
· Intelligent: Built-in visual touch screen, adjustable UV power as per air flow, temperature and other environmental data, optional USB, WiFi, RS485 interface for remote control and display
· Easy installation: Plug and play, integrated design with lamp and ballast, operation status indication, ready to connect to main duct of fresh air or return air, built-in main power switch

· Eco-friendly: No chemical, no secondary residue
· Light weighted design: Extruded aluminum frame is used for lamp installation. The aluminum reflector is used to enhance the UV reflection.

— Features —

· Product design: integrated modular design, installed in the HVAC system host air supply outlet or air supply pipe, the product can realize the linkage operation with the fan, equipped with light source operation/fault indication device, independent power-off switch, convenient for the maintenance of equipment.
· Mechanical part:lightweight design, lightweight aluminum materials, the internal cavity of the German aluminum mirror reflection material, unique reflection angle, enhance the internal UV reflection efficiency, improve the overall UVC UV irradiation intensity.
· Light source:Equipped with 200W~600W high-efficiency electrode-free UV disinfection lamps produced by the company, featuring long life, high UV irradiation, high reliability, energy saving and environmental protection.
· Electrical: Equipped with the company's production of independent profile power supply, protection level IP43, effectively ensure the performance of the product, safe and reliable.

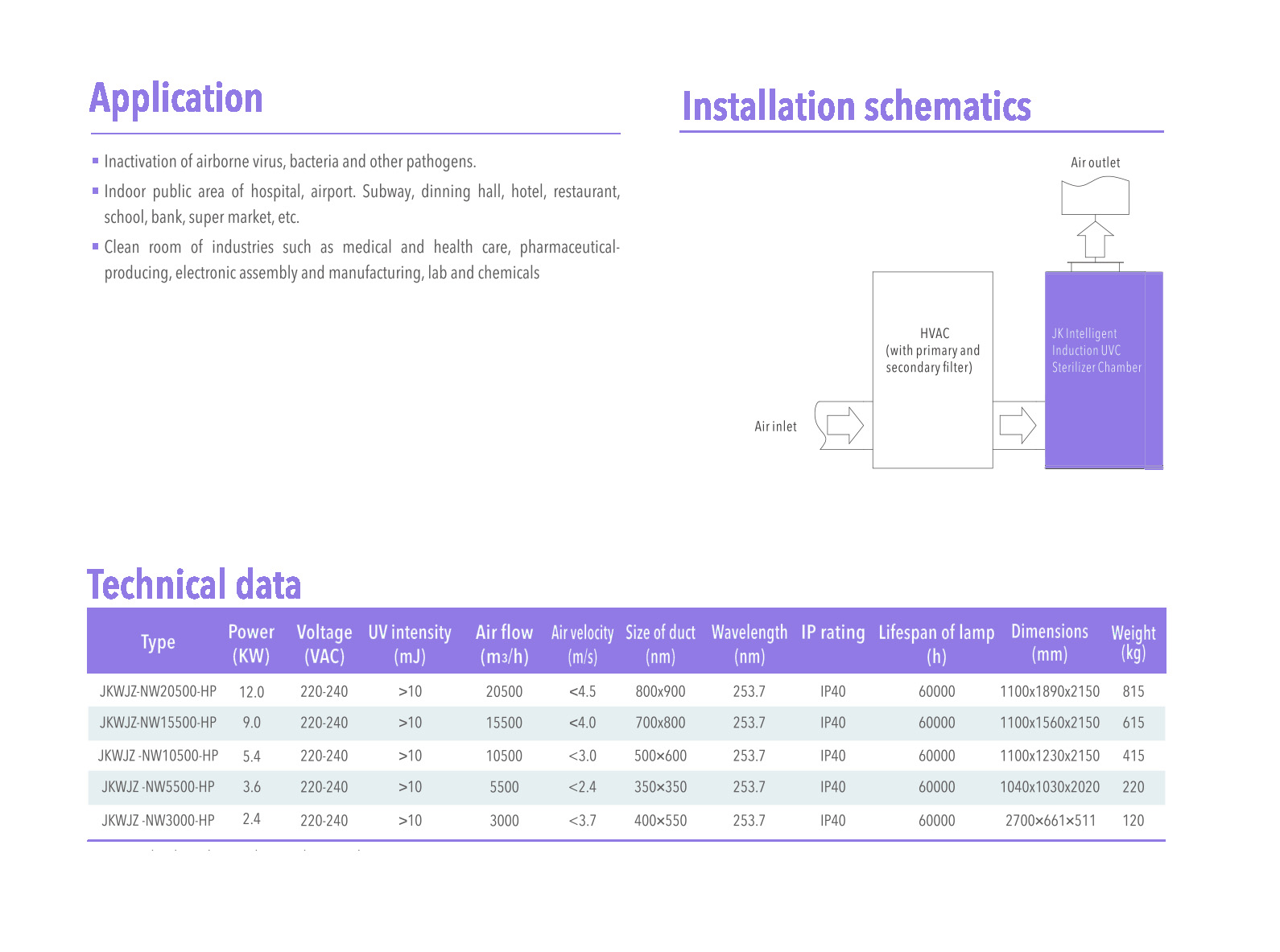

— One unit for multiple scenarios —

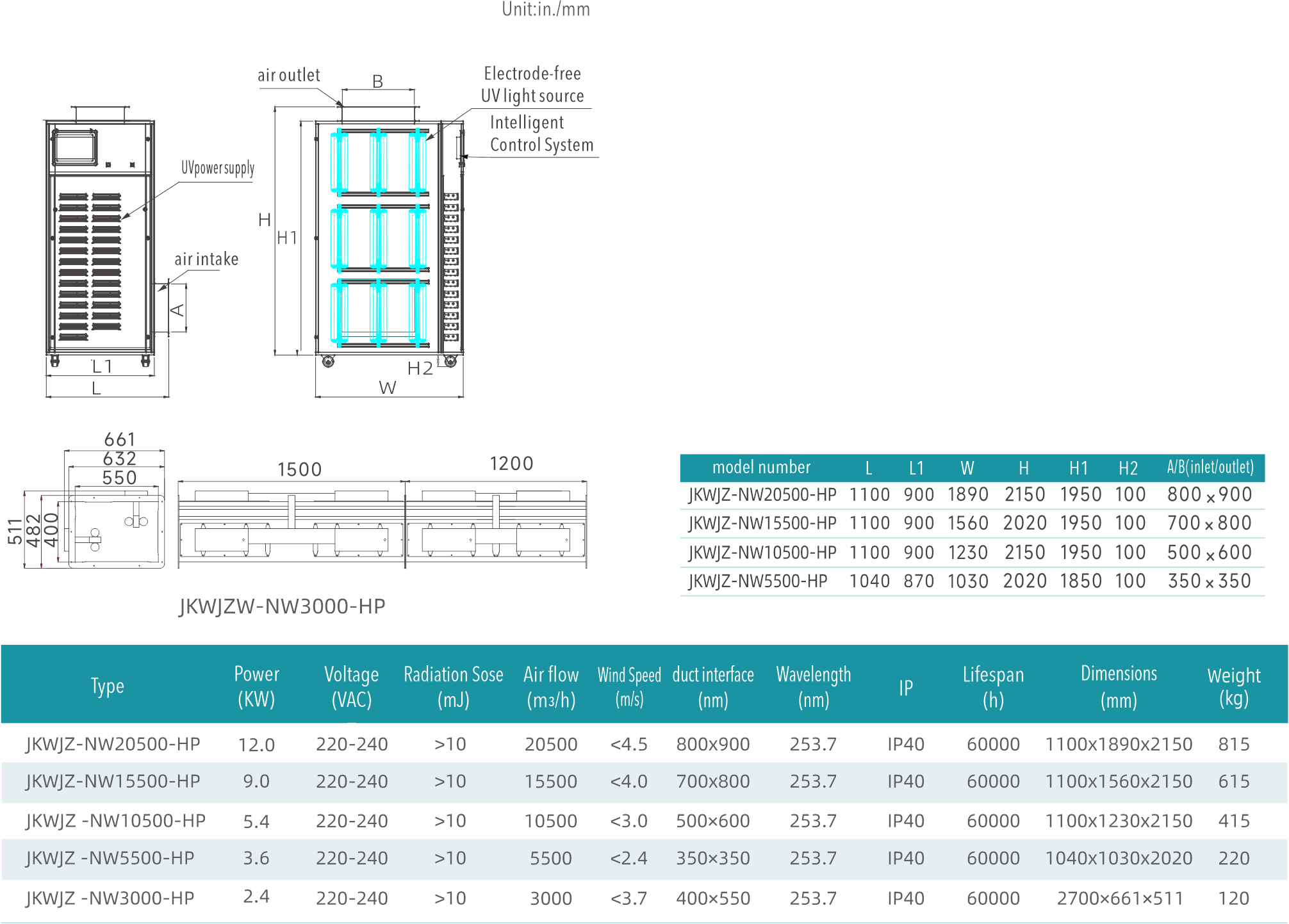

— Specifications —
