222nm UV Lamp Air and Surface Sterilizer Flat Far UVC Ultraviolet Lamps for Indoor Use Sterilization Using Ultra Violet Lamps
-Description: flat far UVC module 5W
-Model: DBD37
-ERPno.: 1150040000006
-Referenceno.: FLAMP01
- Overview
- Recommended Products
Product Description
| Parameter | Data |
|---|---|
| Description | flat far UVC module 5W |
| Model | DBD37 |
| ERP no. | 1150040000006 |
| Reference no. | FLAMP 01 |
| Dimensions(mm) | Φ56.9mmX30mm (Φ2.24X1.18 inch) |
| Net Weight | 0.1 Kg |
| Wattage | 5W |
| Wavelength | Far UVC 222nm |
| Effective UV Intensity | 1900uW/cm2 (@ lens surface) |
| Ambient Operating Temperature Range | -10℃ to +50℃ |
| Expected Lifespan | 4000+ hrs |
| Environmental safety | Mercury Free |
| Storage Environment | -10 to 50 ℃ Dry and ventilated |
| Beam Angle | 120° |
| Bulb casing | ABS Plastics |
| Mounting and operation direction | Universal |

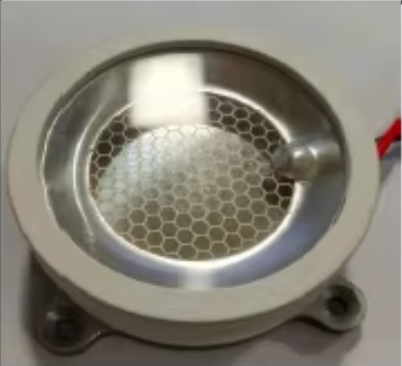

| Picture of product |  |
| Parameter | Data |
| Description | flat far UVC module 10W |
| Model | DBD45 |
| ERP no. | 1150040000007 |
| Reference no. | Flamp02 |
| Dimensions(mm) | Φ64.9mmX30mm (Φ2.55X1.18 inch) |
| Net Weight | 0.13 Kg |
| Wattage | 8W |
| Wavelength | Far UVC 222nm |
| Effective UV Intensity | 3100uW/cm2 (@ lens surface) |
| Ambient Operating Temperature Range | -10℃ to +50℃ |
| Expected Lifespan | 4000+ hrs |
| Environmental safety | Mercury Free |
| Storage Environment | -10 to 50 ℃ Dry and ventilated |
| Beam Angle | 120° |
| Bulb casing | ABS Plastics |
| Mounting and operation direction | universal |
| Picture of product | |
| Parameter | Data |
| Description | flat far UVC module 15W |
| Model | DBD54 |
| ERP no. | 1150040000008 |
| Reference no. | Flamp 03 |
| Dimensions(mm) | Φ73.9mmX30mm(Φ2.91X1.18 inch) |
| Net Weight | 0.175 Kg |
| Wattage | 10W |
| Wavelength | Far UVC 222nm |
| Effective UV Intensity | 3850uW/cm2 (@ lens surface) |
| Ambient Operating Temperature Range | -10℃ to +50℃ |
| Expected Lifespan | 4000+ hrs |
| Environmental safety | Mercury Free |
| Storage Environment | -10 to 50 ℃ Dry and ventilated |
| Beam Angle | 120° |
| Bulb casing | ABS Plastics |
| Mounting and operation direction | universal |
| Picture of product | |
| Parameter | Data |
| Description | flat far UVC module 20W |
| Model | DBD65 |
| ERP no. | 1150040000009 |
| Reference no. | Flamp 04 |
| Dimensions(mm) | Φ84.9mmX30mm (Φ3.34X1.18 inch) |
| Net Weight | 0.235 Kg |
| Wattage | 15W |
| Wavelength | Far UVC 222nm |
| Effective UV Intensity | 4950uW/cm2 (@ lens surface) |
| Ambient Operating Temperature Range | -10℃ to +50℃ |
| Expected Lifespan | 4000+ hrs |
| Environmental safety | Mercury Free |
| Storage Environment | -10 to 50 ℃ Dry and ventilated |
| Beam Angle | 120° |
| Bulb casing | ABS Plastics |
| Mounting and operation direction | universal |
|
