-Fixture housing: Aluminum slim linear type (Cold forging)
-Power supply: Extruded aluminum
-Light distribution: Type V Wide (120°)

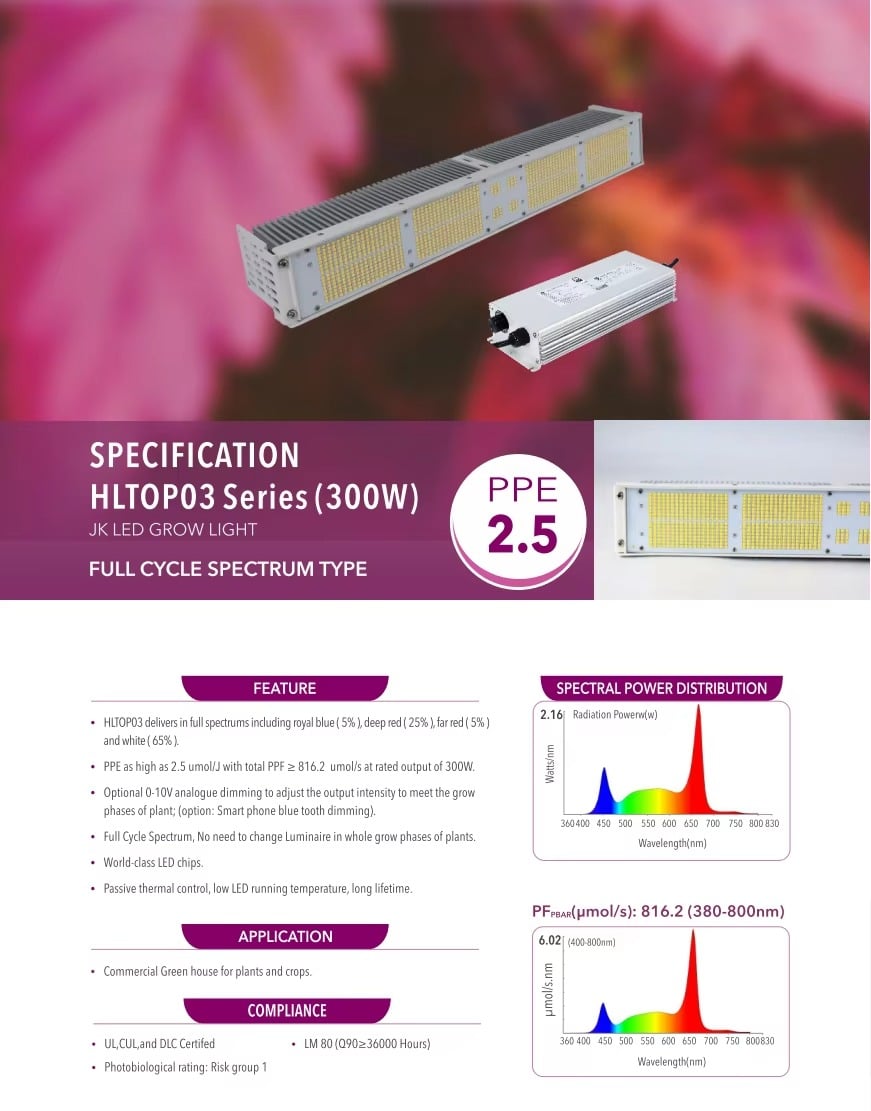

FEATURE
HLTOP03 delivers in full spectrums including royal blue (5%), deep red (25%), far red (5%) and white (65%). - PPE as high as 2.5 umol/J with total PPF ≥ 816.2 umol/s at rated output of 300W. - Optional 0 - 10V analogue dimming to adjust the output intensity to meet the grow phases of plant; (option: Smart phone blue tooth dimming). - Full Cycle Spectrum, No need to change Luminaire in whole grow phases of plants. - World - class LED chips. - Passive thermal control, low LED running temperature, long lifetime.

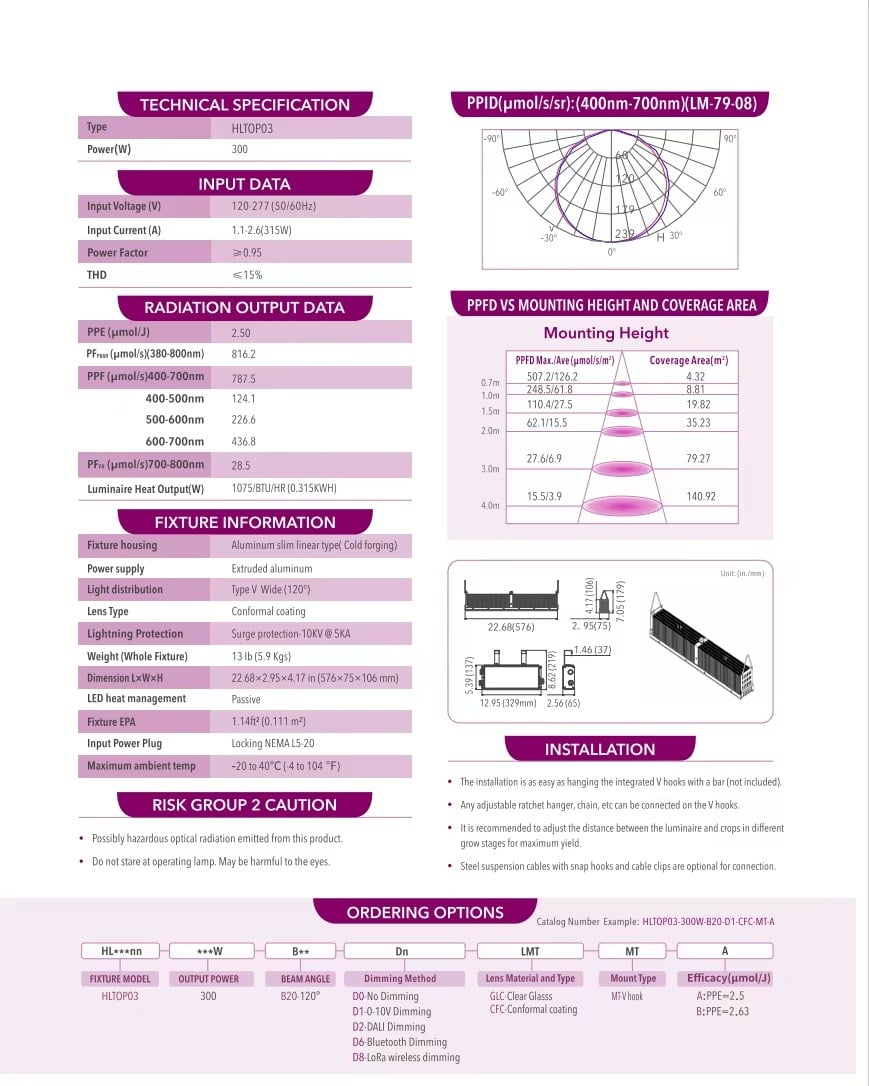

| Item | Detail |
|---|---|
| Fixture housing | Aluminum slim linear type (Cold forging) |
| Power supply | Extruded aluminum |
| Light distribution | Type V Wide (120°) |
| Lens Type | Conformal coating |
| Lightning Protection | Surge protection - 10KV @ 5KA |
| Weight (Whole Fixture) | 13 lb (5.9 Kgs) |
| Dimension L×W×H | 22.68×2.95×4.17 in (576×75×106 mm) |
| LED heat management | Passive |
| Fixture EPA | 1.14ft² (0.111 m²) |
| Input Power Plug | Locking NEMA L5 - 20 |
| Maximum ambient temp | -20 to 40°C (-4 to 104 °F) |
Packaging : Cartoon
Shipping : BY SEA, BY AIR, Multimodal Transport, also BY TRAIN.
