UVC Sterilizing Lamp 15W 222nm Far UVC Lampe UV De Désinfection for Indoor Use Air Conditionerr Using Luz Ultravioleta Lamps
-Model: DL-CR-CUV-D4-10W-54-MV-NBT-D1-W
-ERP No.: 115002030001
-Reference: DL-FUVC-05
-Dimensions(mm): Φ111mmX111mm (4.37"X4.37")
-Luminaire Net Weight: 0.75Kg
- Overview
- Recommended Products
Product Description
| Description | Data |
|---|---|
| Model | DL-CR-CUV-D4-10W-54-MV-NBT-D1-W |
| ERP No. | 115002030001 |
| Reference | DL-FUVC-05 |
| Dimensions(mm) | Φ111mmX111mm (4.37"X4.37") |
| Luminaire Net Weight | 0.75Kg |
| Wattage | 10W UVC + 10W LED |
| Wavelength | Far UVC 222nm + visible lighting |
| Effective UV Intensity | 2000uW/cm² (@ lens surface) |
| Suggested coverage | 3 X 3 m |
| Input Voltage | 120-240 VAC |
| Maximum Input Current | 0.185A |
| Lamp | Flat round microplasma, dimmable |
| Available Control | Yes, blue tooth controlled UV irradiation |
| Dimmable UV output | Yes |
| Dimmable LED output | No |
| Available optical filter | Yes |
| Ambient Operating Temperature Range | -10℃ to +50℃ |
| Environmental safety | Mercury free |
| Expected Lifespan | 4000+ hrs |
| Storage Environment | Dry and ventilated |
| Beam Angle | 120° |
| Casing | Die cast aluminum |
| Ballast | Built-in |
| Mounting & application | Ceiling, pendent |
| Picture of product |  |
| Description | Data |
|---|---|
| Model | DL-RC-CUV-D4-10W-54-MV-NBT-DO-W |
| ERP No. | 1150020100001 |
| Reference | DL-PUVC-02 |
| Dimensions(mm) | Φ133mmX99mm |
| Net Weight | 0.8Kg |
| Ballast Net Weight | 0.145Kg |
| Wattage | 10W |
| Wavelength | Far UVC 222nm |
| Effective UV Intensity | 2000uW/cm2 (0 cm) |
| Suggested coverage | 3MX3M |
| Input Voltage | 120-277 |
| Maximum Input Current | 0.185A |
| Lamp | Flat round microplasma |
| Available Control | no |
| available optical filter | Yes |
| Ambient Operating Temperature Range | -10℃ to +50℃ |
| Environmental safety | Mercury free |
| Expected Lifespan | 40000+ hrs |
| Storage Environment | Dry and ventilated |
| Beam Angle | 120° |
| Bulb casing | die cast aluminum |
| Ballast | Independent |
| Mounting & application | Recessed |
| Picture of product |  |
| Note: The above products including lamp and ballast are made by FJJK. Please contact [email protected] for any enquiry. | |
| Description | Data |
|---|---|
| Model | DL-SQ-CUV-L4W4-10W-54-MV-NBT-D1-W |
| ERP No. | 1150020200002 |
| Reference | DL-FUVC-06 |
| Dimensions(mm) | 111*111*110mm (4.37*4.37*4.33 inch) |
| Luminaire Net Weight | 0.86Kg |
| Wattage | 10W UVC + 10W LED |
| Wavelength | Far UVC 222nm + visible lighting |
| Effective UV Intensity | 2000uW/cm2 (@ lens surface) |
| Suggested coverage | 3 X 3 m |
| Input Voltage | 120-240 VAC |
| Maximum Input Current | 0.185A |
| Lamp | Flat round microplasma, dimmable |
| Available Control | Yes, blue tooth controlled UV irradiation |
| Dimmable UV output | Yes |
| Dimmable LED output | No |
| Available optical filter | Yes |
| Ambient Operating Temperature Range | -10℃ to +50℃ |
| Environmental safety | Mercury free |
| Expected Lifespan | 4000+ hrs |
| Storage Environment | Dry and ventilated |
| Beam Angle | 120° |
| Casing | Die cast aluminum |
| Ballast | Built-in |
| Mounting & application | Ceiling, pendent |
| Picture of product |  |
| Parameter | Data |
|---|---|

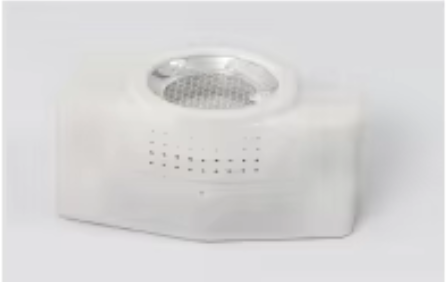

| Description | Portable table top Sanitizer |
| Model | UL-SS-CUV-H2.8-10W-45-MV-BT-DO-W |
| ERP no. | 1150050100001 |
| Reference no. | UP-FUVC-01 |
| Dimensions(mm) | 142*80*71 mm (5.59*3.15*0.18 inch) |
| Net Weight | 0.54 Kg |
| Wattage | 10W |
| Wavelength | Far UVC 222nm |
| Effective UV Intensity | 2000uW/cm2 (@ lens surface) |
| Nominal Capacity of battery | 4000mA |
| Maximum Input Power | 12W |
| Nominal Voltage | 12V (110-277VAC charger) |
| Charge Voltage | 12V/2A |
| battery interface | Rechargeable & USB Powered (TYPE C) |
| Battery Type | Lithium Ion Polymer |
| Ambient Operating Temperature Range | -10℃ to +50℃ |
| Expected Lifespan | 4000+ hrs |
| Environmental safety | Mercury Free |
| Storage Environment | -10 to 50 ℃ Dry and ventilated |
| Beam Angle | 120° |
| Bulb casing | ABS Plastics |
| Mounting | Table top |
| Picture of product |  |
| Description | Data |
|---|---|
| Model | DL-SQ-CUV-L55W65-10W-54-MV-NBT-D1-W |
| ERP No. | 1150020200003 |
| Reference | DL-FUVC-07 |
| Dimensions(mm) | Ø65*55mm |
| Luminaire Net Weight | 0.86Kg |
| Wattage | 10W UVC + 10W LED |
| Wavelength 波长 | Far UVC 222nm + visible lighting |
| Effective UV Intensity | 2000uW/cm2 (@ lens surface) |
| Suggested coverage | 2 X 2 m |
| Input Voltage | 120-240 VAC |
| Maximum Input Current | 0.16 A |
| Lamp | Flat round microplasma far UVC lamp, dimmable |
| Available Control | Yes, blue tooth controlled UV irradiation |
| Available Control | yes |
| Dimmable UV output | yes |
| Dimmable LED output | No |
| Available optical filter | Yes |
| Ambient Operating Temperature Range | -10℃ to +40℃ |
| Environmental safety | Mercury free |
| Expected Lifespan | 4000+ hrs |
| Storage Environment | Dry and ventilated |
| Beam Angle | 120° |
| Casing | Die cast aluminum |
| Ballast | Built-in |
| Mounting & application | Ceiling, pendent, E27 lampholder |
| Picture of product |  |
